Description

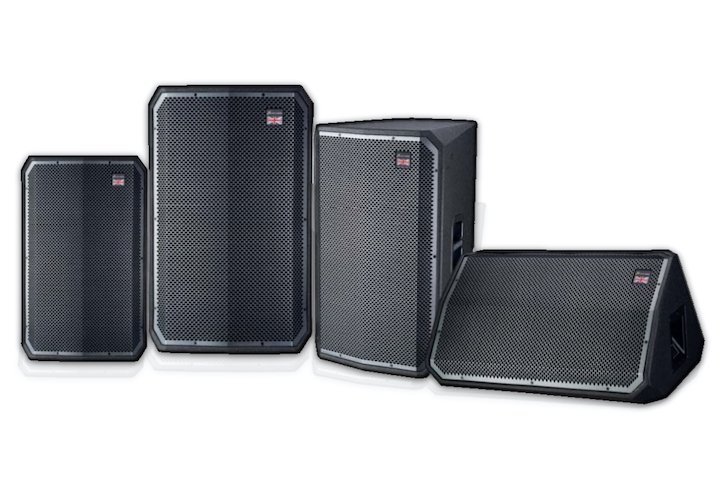

The new premium quality Studiomaster speaker models are the S3 range of active and passive, high quality speaker cabinets. Featuring 14 models to choose from, all fitted with premium components and CLASS D amplification in the active models.
With up to date circuitry, the active moves feature a boost switch to add extra tone to your background music, and a unique switchable standby mode which will turn off the amplifier when no signal has been detected for 3 minutes. As soon as a signal is detected again, the amplifier will resume operation.
All models have large recessed side handles, the 10, 12 and 15” models come with M10 flying points and the larger 2×12” and 2×15” come with rear mounted castors for easy transportation.
Type 2 way passive 10″
Frequency response 60Hz~18kHz(±3dB)
Power handling 300W (Continuous), 1200W (Peak)
Crossover frequency 1.8kHz
Sensitivity 1w @ 1m 96 dB
Max SPL 127dB
Coverage (HxV) 90°x50°
Nominal impedance 8ohm
LF 1×10”/φ65mm Voice coil
HF 1×1.75”/φ44mm Voice coil
35mm pole mount Yes
Input mode 2xNL4MP
Dimensions (WxHxD) 359×564×349mm
Weight net 19kg
