From meeting room to presentations
anywhere on the road
The DS272 is a native SVGA digital projector from Vivitek. It features DLP® and BrilliantColor™ technologies to display distinct, vibrant images in a widescreen format. The Vivitek DS272 features numerous connectivity options including two HDMI v1.4, a brightness level of 4,000 ANSI Lumens and a 15000:1 contrast ratio. With its light weight and compact form this is a short throw projector for easy installation that will fit any budget.Vivitek D230 Front
Key features
DLP® technology with BrilliantColor™ for vibrant and rich picture quality
4000 ANSI lumens of brightness and 15,000:1 contrast ratio for clear, crisp and bright presentations
SVGA (800 x 600) native resolution scalable up to a maximum WUXGA (1920 x 1200) resolution
Dual-HDMI inputs for high definition content with the same high quality
Compact and lightweight at 2.6kg for easy portability
A long lamp life up to 10,000 hours for low Total Cost of Ownership (TCO)
Audio ready with built-in 2 watt audio speaker, audio-in and audio-out ports
DLP® Technology
DLP® Technology
DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from
Native Resolution SVGA (800 x 600)
Brightness 4000 ANSI Lumens
Contrast Ratio 15,000:1
Max. Supported Resolution WUXGA(1,920 x 1,200)
Native Aspect Ratio 4:3
Lamp Life and Type 4,000/6,000/8,000 Hours (Normal/Eco./Dynamic Eco. Mode), 203W/170W
Display Type Single chip DLP® Technology by Texas Instruments
Chip Size 0.55” DMD
Throw Ratio 1.97 – 2.17:1
Image Size (Diagonal) 27″ – 290″
Projection Distance 1.2 – 11m
Projection Lens F = 2.51 – 2.69, f = 21.95 – 24.18mm
Zoom Ratio 1.1x
Offset (Based on Full Image Height) 115%
Keystone Correction Vertical +/-40°
Speakers 2W
Video Compatibility SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N),
SECAM (B, D, G, K, K1, L)

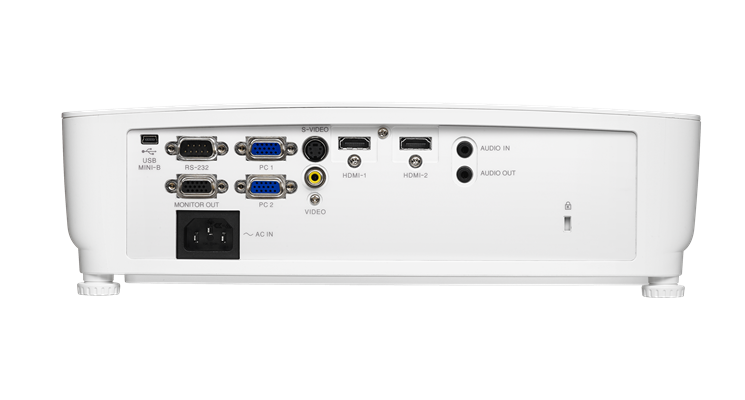

I/O Connection Ports VGA-In, RS-232, USB (Mini-Type B (Service))
Dimensions (W x D x H) 285 x 193.5 x 111.5mm
Weight 1.97 kg
Noise Level 30dB/28dB (Normal/Eco. Mode)
Power Supply: AC 100-240V, 50/60Hz Consumption: 220W (Eco. Mode), 260W (Normal Mode),
